cheap price 80mesh 32T /64 Micron Thread cheap screen printing mesh

Domestic ceramic, indirect ceramic, ceramic tiles, etc

Recommend mesh 10T-165T

1. Raw materials: 100% polyester filament, 100% nylon yarn, etc

2. Weaving method: plain weave, etc

3. Screen screen yarn specification (our company can customize screen yarn  according to your requirements)

Description

Polyester Screen Printing Mesh.jpg

Domestic ceramic, indirect ceramic, ceramic tiles, etc

Recommend mesh 10T-165T

1. Raw materials: 100% polyester filament, 100% nylon yarn, etc

2. Weaving method: plain weave, etc

3. Screen screen yarn specification (our company can customize screen yarn according to your requirements)

1) specification: dpp10t-165t

2) aperture: 25-740 micron

3) thickness: 500-800 microns

4) mesh 25-420mesh/inch

5) specification of each roll: width of each roll: 127 cm, 165 cm, 280 cm etc., maximum width of 365 cm;

Length of each roll: 50 meters; Can be customized

Mesh count Thread diameter Weave color Mesh Opening Open area(%) Thickness Ink volume cm3xm2 Recommended tension
(per inch)(per cm)(microns)(PW) (microns) (um)g/㎡(N/cm)
25 Mesh10T2501:1PWwhite7405346524660
40 Mesh16T1001:1PWwhite4354742018948
60 Mesh 24T1001:1PWwhite3165819010948
60 Mesh24T1201:1PWwhite3005121010542
80 Mesh32T641:1PWwhite245611106728
80 Mesh32T1001:1PWwhite200431606943
100 Mesh39T551:1PWwhite201611006230
100 Mesh39T801:1PWwhite172461426542
110 Mesh 43T801:1PWwhite150411305535
120 Mesh48T701:1PWwhite135411154632
135 Mesh53T551:1PWwhite105331143838
137 Mesh54T641:1PWwhite115391024030
150 Mesh59T551:1PWwhite10040933932
155 Mesh61T641:1PWwhite90321063532
163 Mesh64T551:1PWwhite101421054430
163 Mesh64T641:1PWwhite90321063435
180 Mesh72T481:1PWwhite9446803732
180 Mesh 72T551:1PWwhite/yellow7529922732
195 Mesh 77T481:1PWwhite/yellow7830842428
195 Mesh77T551:1PWwhite/yellow7025882428
200 Mesh80T481:1PWwhite/yellow7830842428
200 Mesh80T551:1PWwhite/yellow7025882428
230 Mesh90T481:1PWwhite/yellow5525782033
255 Mesh100T401:1PWwhite/yellow5832652127
280 Mesh110T401:1PWwhite/yellow4827651730
305 Mesh120T341:1PWwhite/yellow4530551626
305 Mesh120T401:1PWwhite/yellow4020551626
355 Mesh140T311:1PWwhite/yellow3526481325
355 Mesh140T341:1PWwhite/yellow3020551030
380 Mesh150T341:1PWwhite/yellow3020691030
380 Mesh150T311:1PWwhite/yellow3223471026
420 Mesh165T311:1PWwhite/yellow251749828

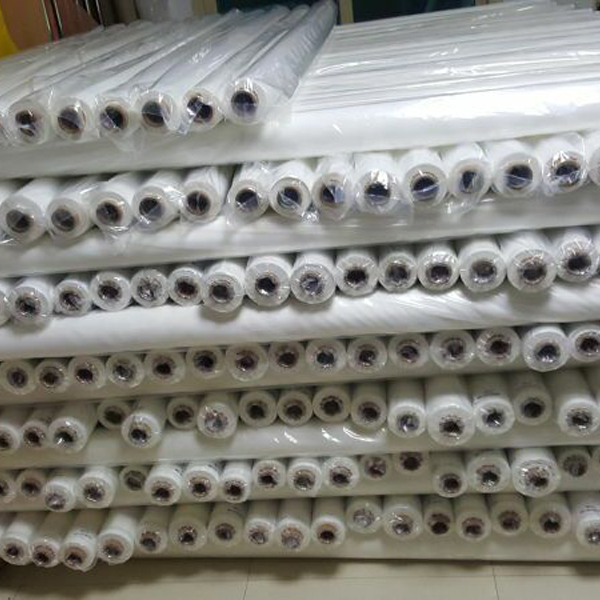

Packing

The normal package of the mesh is roll in plastic bag, and then rolls in plastic weaving bags or carton. If

the rolls are shipped by express or by air, we suggest not use the carton, it can save lots of volume and

freight charge then. In actual order, we'll refer to your kind request on packages. Below images are

normal package details of our mesh, just for your reference.
