Polyester Printing Mesh
Home > Products > Polyester Printing Mesh
Products
90T polyester screen printing mesh fabric for car audio dust filter 90T polyester screen printing mesh fabric for car audio dust filter 90T polyester screen printing mesh fabric for car audio dust filter 90T polyester screen printing mesh fabric for car audio dust filter

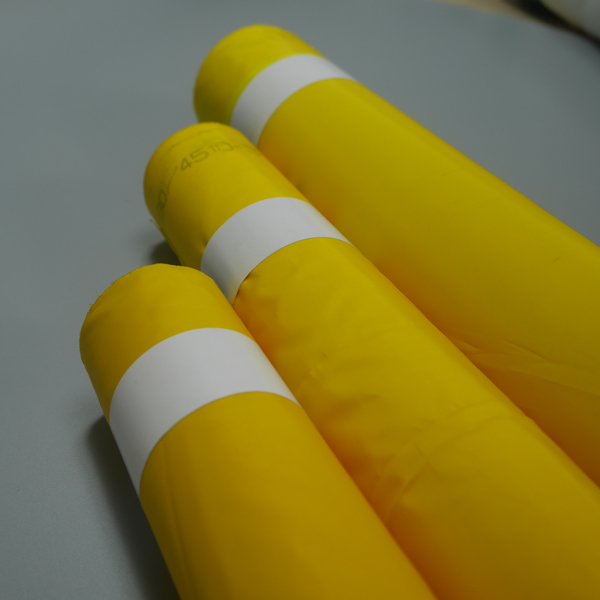

90T polyester screen printing mesh fabric for car audio dust filter

Domestic ceramic, indirect ceramic, ceramic tiles, etc

Recommend mesh 10T-165T

1. Raw materials: 100% polyester filament, 100% nylon yarn, etc

2. Weaving method: plain weave, etc

3. Screen screen yarn specification (our company can customize screen yarn  according to your requirements)
MESSAGE CONTAT US

Description

Polyester Screen Printing Mesh 7.jpg

Domestic ceramic, indirect ceramic, ceramic tiles, etc

Recommend mesh 10T-165T

1. Raw materials: 100% polyester filament, 100% nylon yarn, etc

2. Weaving method: plain weave, etc

3. Screen screen yarn specification (our company can customize screen yarn according to your requirements)

1) specification: dpp10t-165t

2) aperture: 25-740 micron

3) thickness: 500-800 microns

4) mesh 25-420mesh/inch

5) specification of each roll: width of each roll: 127 cm, 165 cm, 280 cm etc., maximum width of 365 cm;

Length of each roll: 50 meters; Can be customized

Mesh count Thread diameter Weave color Mesh Opening Open area(%) Thickness Ink volume cm3xm2 Recommended tension
(per inch) (per cm) (microns) (PW)   (microns)   (um) g/㎡ (N/cm)
25 Mesh 10T 250 1:1PW white 740 53 465 246 60
40 Mesh 16T 100 1:1PW white 435 47 420 189 48
60 Mesh 24T 100 1:1PW white 316 58 190 109 48
60 Mesh 24T 120 1:1PW white 300 51 210 105 42
80 Mesh 32T 64 1:1PW white 245 61 110 67 28
80 Mesh 32T 100 1:1PW white 200 43 160 69 43
100 Mesh 39T 55 1:1PW white 201 61 100 62 30
100 Mesh 39T 80 1:1PW white 172 46 142 65 42
110 Mesh 43T 80 1:1PW white 150 41 130 55 35
120 Mesh 48T 70 1:1PW white 135 41 115 46 32
135 Mesh 53T 55 1:1PW white 105 33 114 38 38
137 Mesh 54T 64 1:1PW white 115 39 102 40 30
150 Mesh 59T 55 1:1PW white 100 40 93 39 32
155 Mesh 61T 64 1:1PW white 90 32 106 35 32
163 Mesh 64T 55 1:1PW white 101 42 105 44 30
163 Mesh 64T 64 1:1PW white 90 32 106 34 35
180 Mesh 72T 48 1:1PW white 94 46 80 37 32
180 Mesh 72T 55 1:1PW white/yellow 75 29 92 27 32
195 Mesh 77T 48 1:1PW white/yellow 78 30 84 24 28
195 Mesh 77T 55 1:1PW white/yellow 70 25 88 24 28
200 Mesh 80T 48 1:1PW white/yellow 78 30 84 24 28
200 Mesh 80T 55 1:1PW white/yellow 70 25 88 24 28
230 Mesh 90T 48 1:1PW white/yellow 55 25 78 20 33
255 Mesh 100T 40 1:1PW white/yellow 58 32 65 21 27
280 Mesh 110T 40 1:1PW white/yellow 48 27 65 17 30
305 Mesh 120T 34 1:1PW white/yellow 45 30 55 16 26
305 Mesh 120T 40 1:1PW white/yellow 40 20 55 16 26
355 Mesh 140T 31 1:1PW white/yellow 35 26 48 13 25
355 Mesh 140T 34 1:1PW white/yellow 30 20 55 10 30
380 Mesh 150T 34 1:1PW white/yellow 30 20 69 10 30
380 Mesh 150T 31 1:1PW white/yellow 32 23 47 10 26
420 Mesh 165T 31 1:1PW white/yellow 25 17 49 8 28


Packing

The normal package of the mesh is roll in plastic bag, and then rolls in plastic weaving bags or carton. If

the rolls are shipped by express or by air, we suggest not use the carton, it can save lots of volume and

freight charge then. In actual order, we'll refer to your kind request on packages. Below images are

normal package details of our mesh, just for your reference.


Factory&Workshop

Factory &Workshop.jpg
